BluCube - In-Ceiling Speaker - BCK80 (Single)
BluCube - In-Ceiling Speaker - BCK80 (Single)
Woofer8″ woven Kevlar, 1.25″ voice coil, 25 oz magnet, bumped back plate, vented pole piece
Tweeter1″ titanium dome, ferro-fluid cooled, 30° swivel and pivot, neodymium magnet

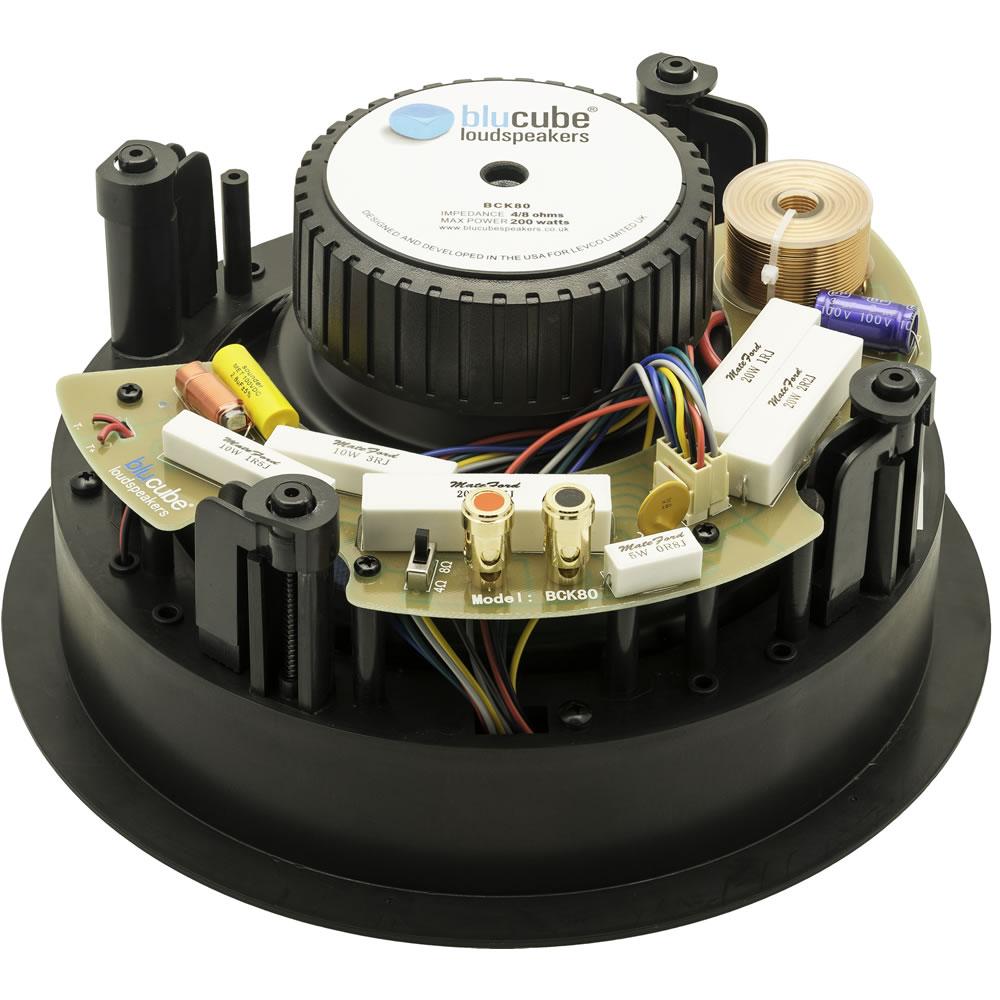

CrossoverFR4 board with 18dB per octave network, +/- 3dB attenuation switches on woofer & tweeter 4ohm/8ohm switchable on PCB, Polyimide switch-auto protect reset switch, 14AWG connection to woofer section. Gold Plated terminals will accept 14AWG wire
89dB at 1W/1 M
Recommended Amplifier Power
4ohm/8ohm selectable on PCB
Cut out size
BIG BRAND PERFORMANCE AT AN EXCEPTIONAL PRICE.
An outstanding speaker with an 8" woofer combined with midrange driver to give the ultimate performance and bass response. With titanium tweeter for crisp treble. Recommended for larger rooms and where more bass response is desired, or main listening rooms.
Each Blucube custom install speaker pair, from the BCK range, features 6db attenuation switches for both woofers and tweeters. These allow the installer to fine tune the speakers output levels to match room designs, specific applications, or individual listening preferences.
The 4ohm/8ohm switch located on the PCB provides the installer increased flexibility in matching power output and impedance levels to optimise the systems performance.
Woven Kevlar Cones
The BCK series of custom install speakers use DuPont Kevlar fibres. The woven Kevlar fibres used in the cone allows the woofer section to deliver better defined bass and at the same time producing a refined midrange bringing a cleaner, clearer listening experience.
The titanium dome tweeters in the Blucube BCK range deliver a smooth, crisp, controlled frequency response with detailed sound. They are able to handle more power and definition more consistently than soft dome tweeters and are protected by a polymide auto-reset switch in the event of overload. With a 30-degree tilt and full rotation swivel capability, the tweeter design allows for a tailored and optimised performance to match room design, or layout.
The two-piece baffle design in the Blucube custom install range allows the tweeter to be directly mounted on the bridge itself rather than the pole mounting found in most current designs. This allows the speaker to handle more power with increased cone stability resulting in reduced harmonic distortion.
All speakers are designed to deliver excellent performance in a full range of indoor listening environments. Polypropylene plastics and large cable gauges, for better signal transfer, will ensure many years of listening enjoyment. Blucube speakers carry a 5 year warranty.
Paint mask, pre-mount bracket and cut outtemplate included
40Hz – 22KHz
10-150 watts per channel
4/8 ohm switchable on circuit board
Depth behind surface
Weight (single package)
Dimensions (single package)
14.2” (H) 18.5" (W) 14.5" (L)(35.5 x 46.3 x 36.3 cm)
